TREK X-Caliber 8 2022年モデル
カラー
コメント
X-Caliber 8は、トレイルを長時間、速く走るために生まれた、クロスカントリーマウンテンバイク。
性能に大きな差をつけるパーツを丁寧に選び、細部の価値を高めている。
Shimano 1x ドライブトレイン、RockShox フォーク、油圧ディスクブレーキを採用し、シングルトラックを速く楽しく走りたいマウンテンバイク初心者やXC レーサーに最適の1台。
※XSサイズとSサイズは27.5ホイールです。
仕様
スペック
- フレーム
- Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR

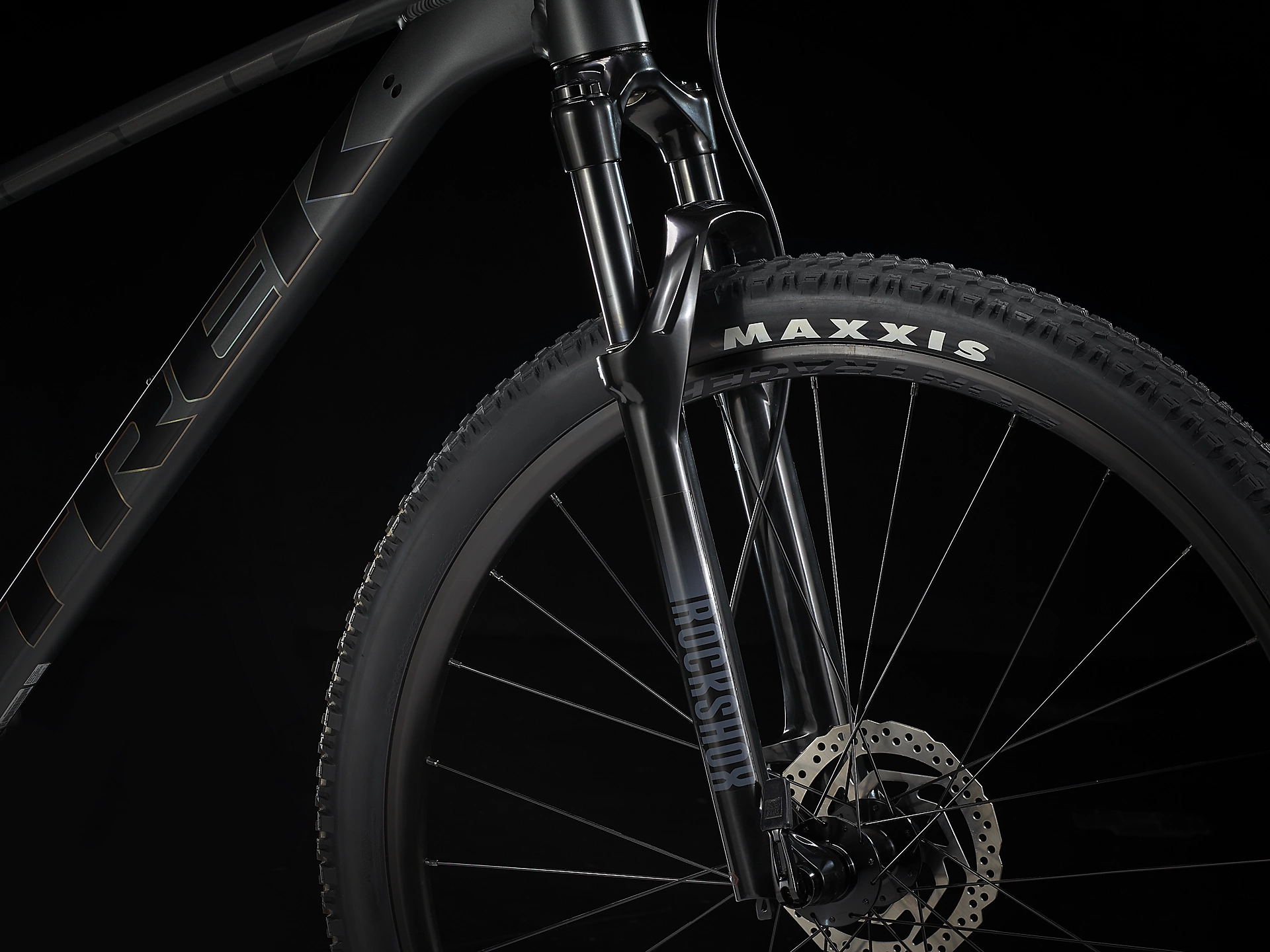

- フォーク
- Size: XS RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Lite, 80mm travel
- Size: S RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Lite, 100mm travel
- Size: M, M/L, L, XL RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Stealth, 100mm travel
- 適合するフォークの最長トラベル
- 120mm (XS: 100mm)
- フロントハブ
- Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
- リアハブ
- Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR
- リム
- Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve
- スポーク
- 14g stainless steel

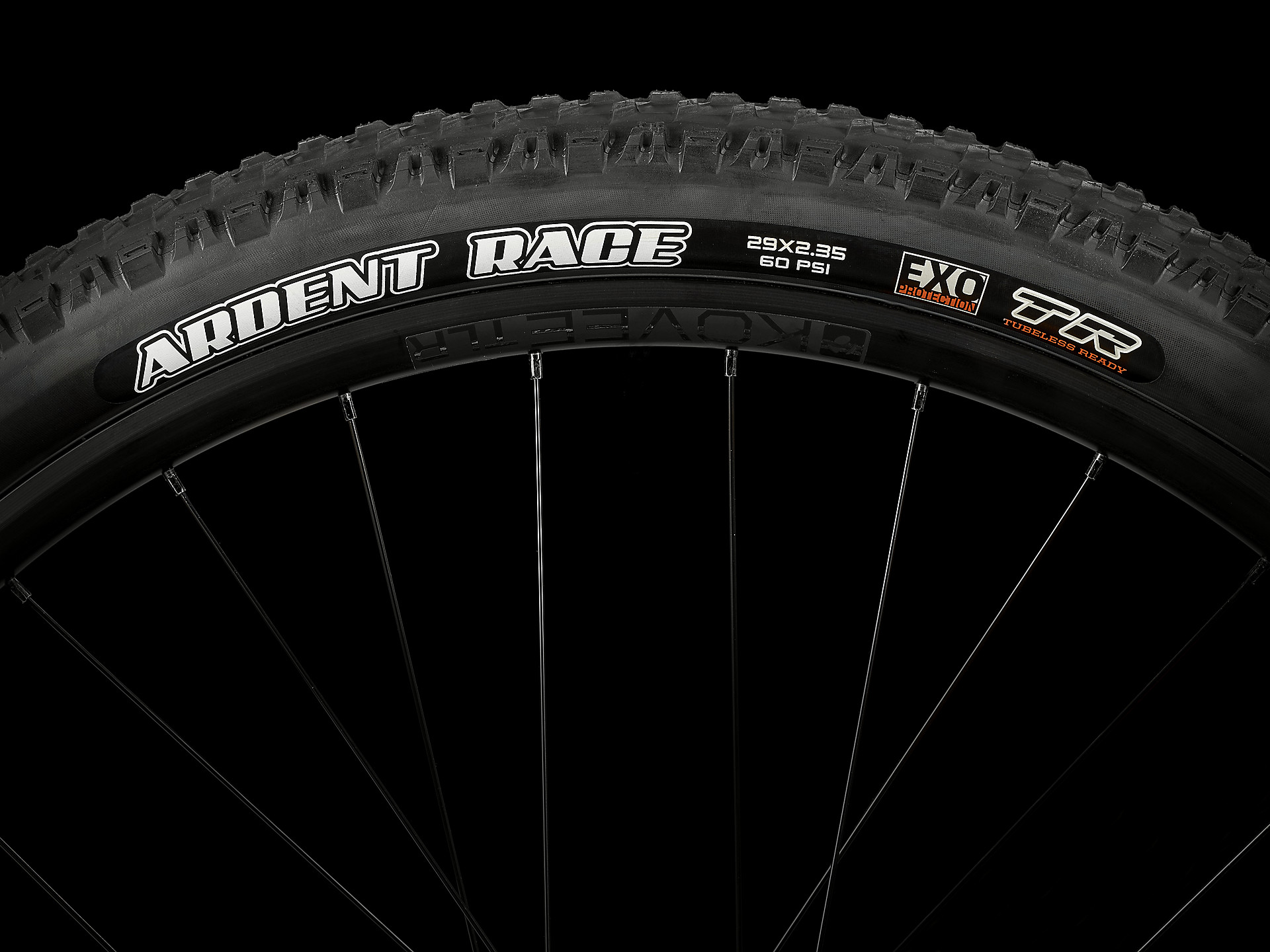

- タイヤ
- Size: XS, S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35"
- Size: M, M/L, L, XL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35"
- タイヤパーツ
- Bontrager TLR sealant, 6oz
- リムストリップ
- Bontrager TLR
- 最大タイヤサイズ
- Frame: 27.5x2.80" or 29x2.40" Fork: See manufacturer
- シフター
- Shimano Deore M6100, 12 speed
- リアディレイラー
- Shimano XT M8100, long cage

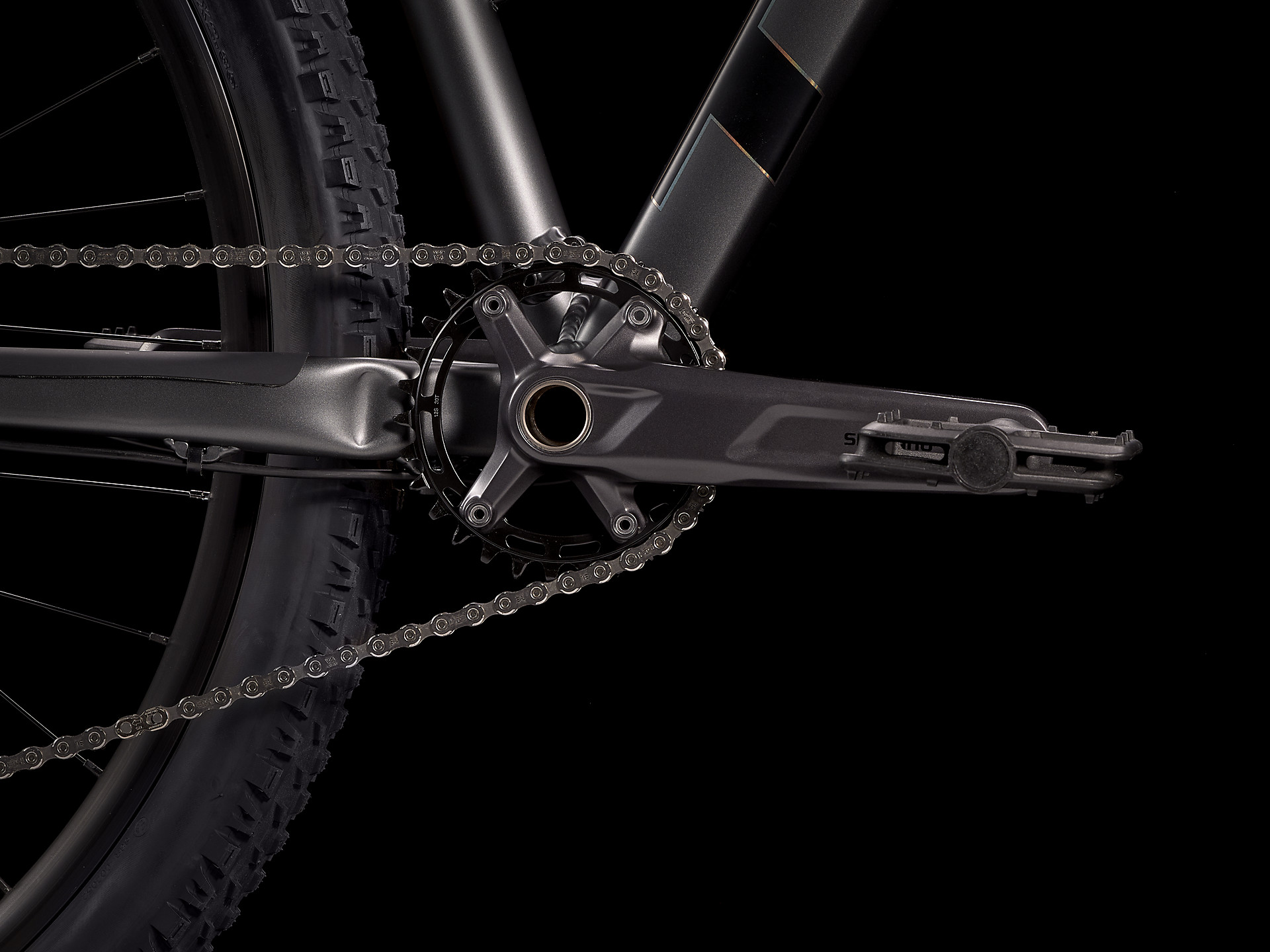

- クランク
- Size: XS, S, M Shimano MT511, 30T steel ring, 52mm chainline, 170mm length
- Size: M/L, L, XL Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
- ボトムブラケット
- Shimano SM-BB52, 73mm, threaded external bearing

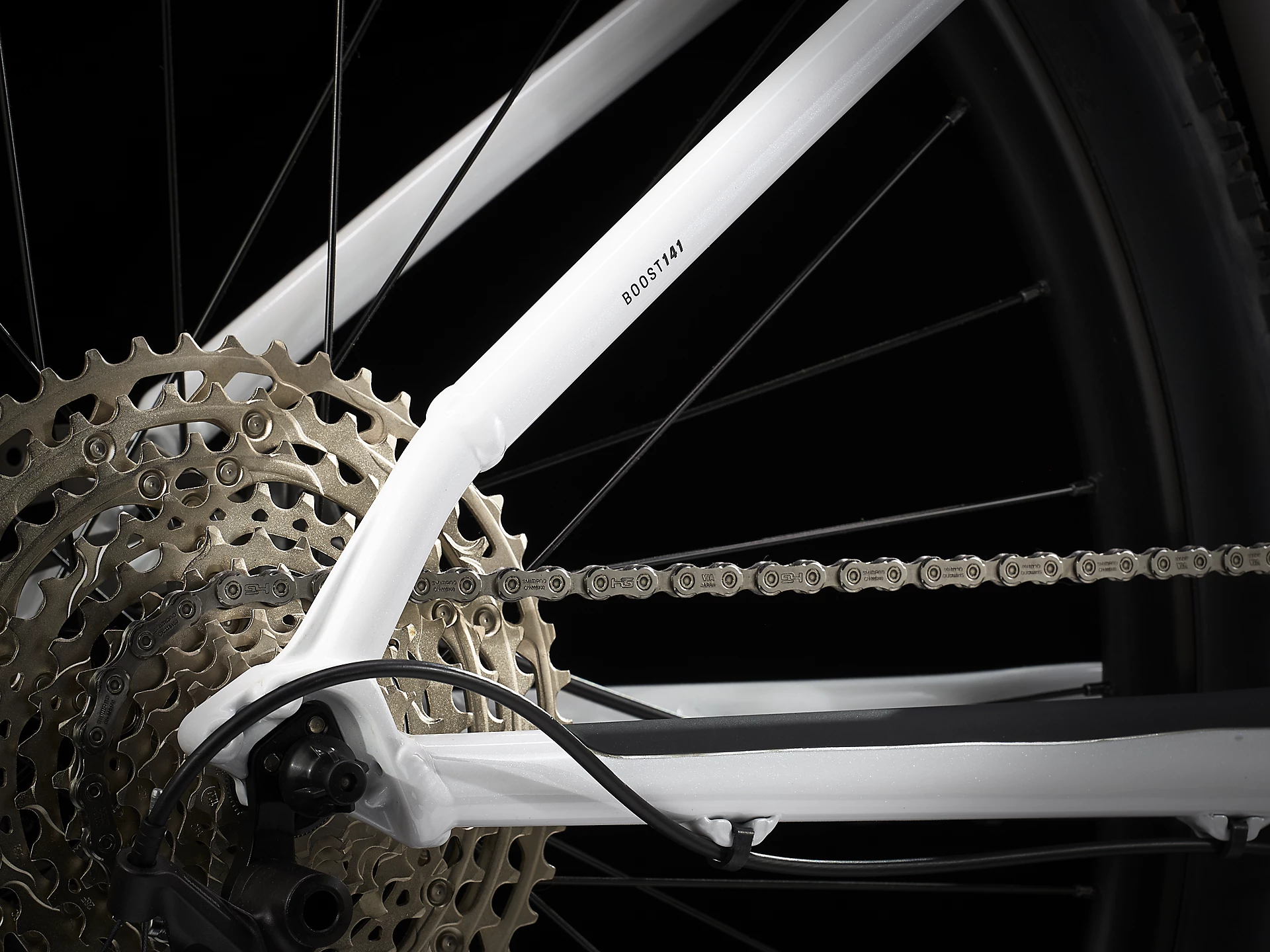

- カセット(スプロケット)
- Shimano Deore M6100, 10-51, 12 speed
- チェーン
- Shimano Deore M6100, 12 speed
- ペダル
- VP-536 nylon platform
- 最大チェーンリングサイズ
- 32T
- サドル
- Bontrager Arvada, steel rails, 138mm width
- シートポスト
- Size: XS, S Bontrager alloy, 31.6mm, 12mm offset, 330mm length
- Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length
- Size: M/L, L, XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length

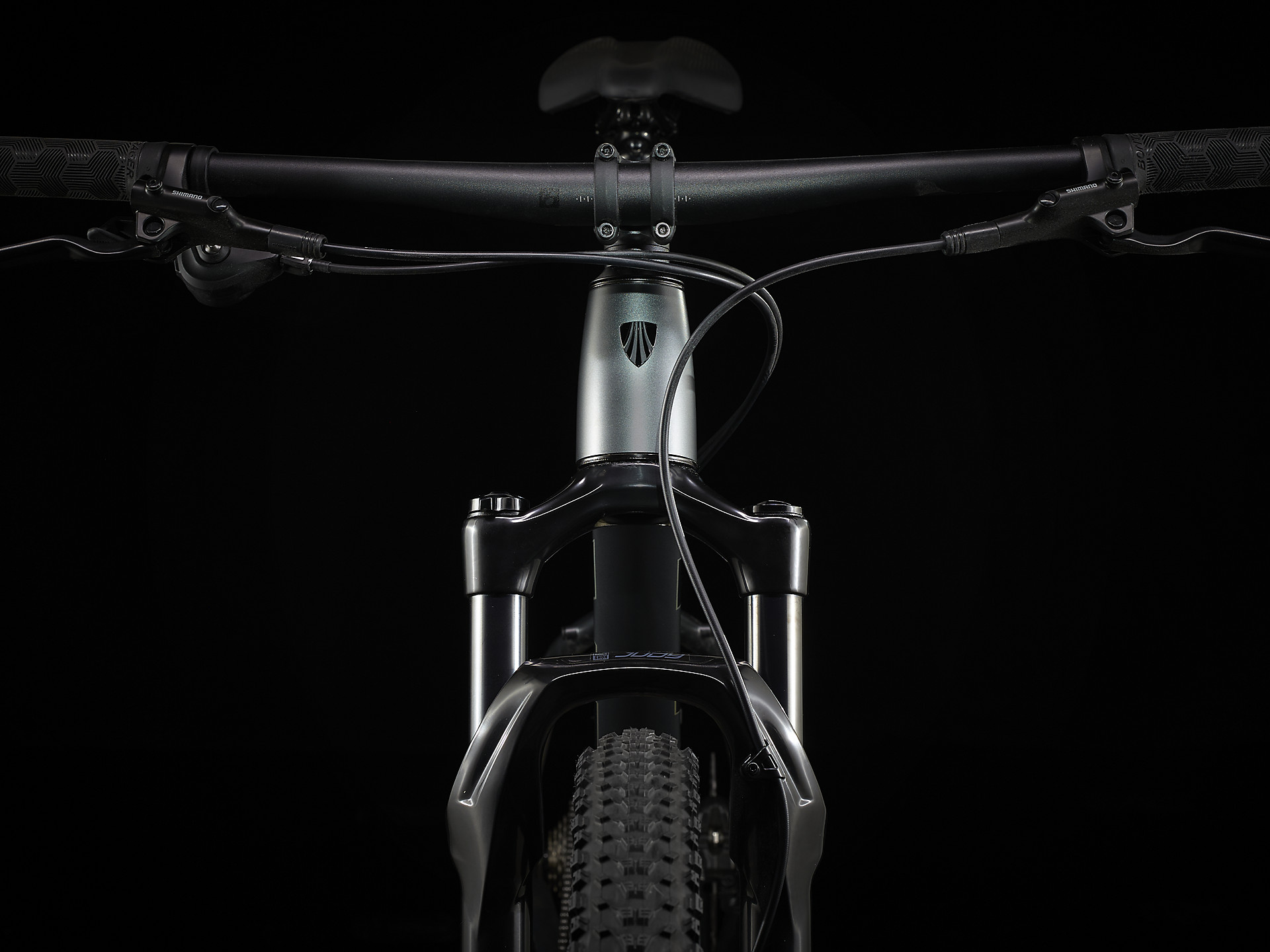

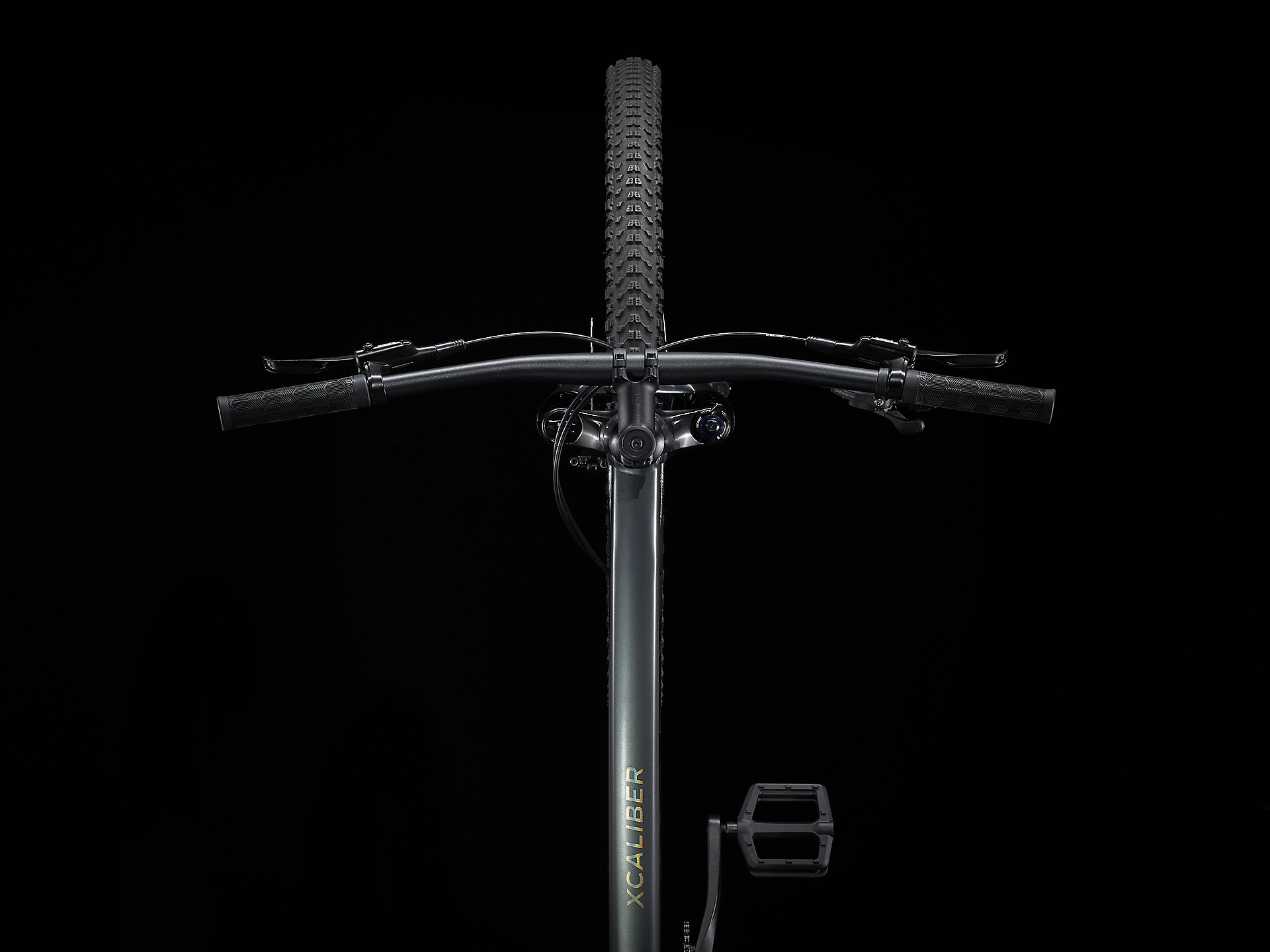

- ハンドルバー
- Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width
- Size: S, M Bontrager alloy, 31.8mm, 5mm rise, 720mm width
- Size: M/L, L, XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width
- グリップ
- Bontrager XR Trail Comp, nylon lock-on
- ステム
- Size: XS, S Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
- Size: M, M/L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
- Size: L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Size: XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
- ヘッドセット
- Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom

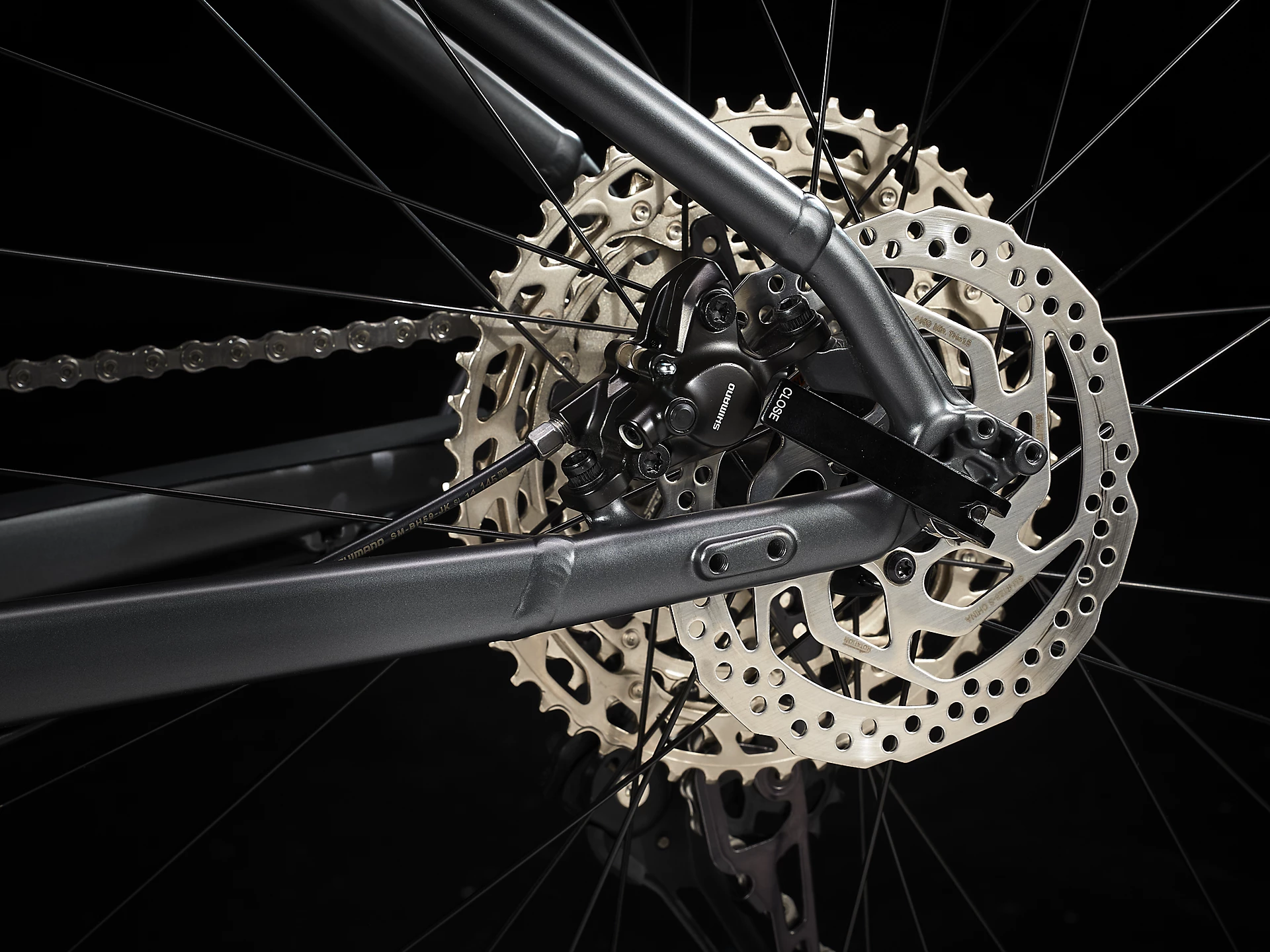

- ブレーキ
- Shimano MT200 hydraulic disc
- ブレーキローター
- Size: XS, S, M, M/L, L, XL Shimano RT26, 6-bolt,160mm
- Size: L, XL Shimano RT26, 6-bolt,180mm
- 重量
- M - 13.05 kg / 28.78 lbs
- 体重制限
- このバイクの重量制限(バイク本体、ライダー、装備含む)は300ポンド(136kg)です。
